ARROW FEATHER

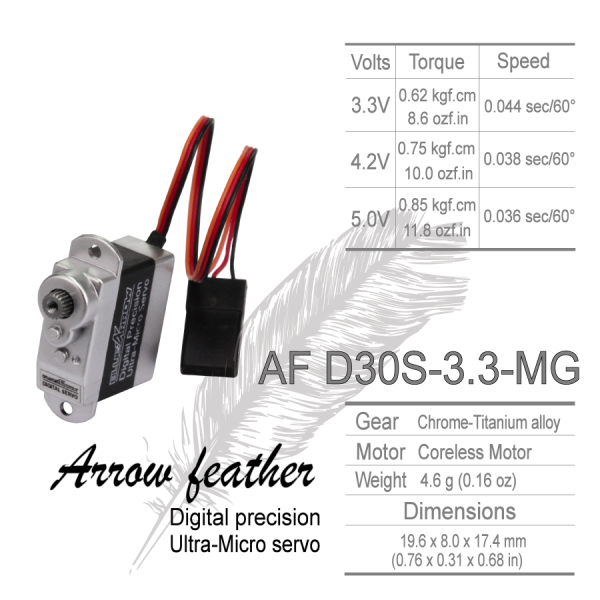

![]() Click to enlarge |
|
Control System: | PWM Pulse Width Control |
Processor: | Digital IC |
Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
Working frequence: | 1520 μs /333 Hz |
Rotation angle sensor: | Precision Potentiometer |
Rotation: | Left Rotation: 60° , Right Rotation: 60° |
Voltage: | 2.8V to 5.5V |
Temperature Range: | -20℃ to 70℃ |
Driver Type: | |
Operating Angle: | 60 Deg. one side pulse traveling 600μs |
Direction: | Clockwise/Pulse Traveling 900μs-2100μs |
Pulse Width Scope: | 900-2100μs |
Neutral pulse: | 1500μs |
Speed:(No-load ): | 0.04sec/ 60° @ 3.3V |
0.04sec/ 40° @ 4.2V | |
Torque:(Stall Full load): | 0.62 kg . cm @ 3.3V |
0.75 kg . cm @ 4.2V | |
Idle Current: | 0.017 A/ 3.3V 0.017 A/ 4.2V |
Running Current: | 0.035 A/ 3.3V 0.042 A/ 4.2V |
Stall Current: | 0.420 A/ 3.3V 0.550 A/ 4.2V |
Dead Band Width: | 1μs |
Motor Type: | |
Bearings: | Middle Porous Bearing |
Bearing Type: | 1.5mm x 4mm x 1.5mm |
Gear Material: | Chrome-Titanium alloy(7075+6061) |
Servo case: | ABS |
Plug: | |
Connector Wire Length: | 120.00 mm |
Connector Wire SPEC: | OD0.6/11 x 0.08mm 3p x 120mm (JST-1.50mm) or (JR) |
Weight: | 4.60 g |
Dimensions (L x W x H): | 19.60*8.00*17.40 mm |
