ARROW FEATHER
 Click to enlarge
|
|
| Control System: | PWM Pulse Width Control |
| Processor: | Digital IC |
| Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
| Working frequence: | 1520 μs /333 Hz |
| Rotation angle sensor: | Precision Potentiometer |
| Rotation: | Left Rotation: 90 °, Right Rotation: 90 ° |
| Voltage: | 3.5V to 6.0V |
| Temperature Range: | -20℃ to 70℃ |
| Driver Type: | |
| Operating Angle: | 60 Deg. one side pulse traveling 600μs |
| Direction: | antiClockwise/Pulse Traveling 500μs-2500μs |
| Pulse Width Scope: | 500-2500μs |
| Neutral pulse: | 1500μs |

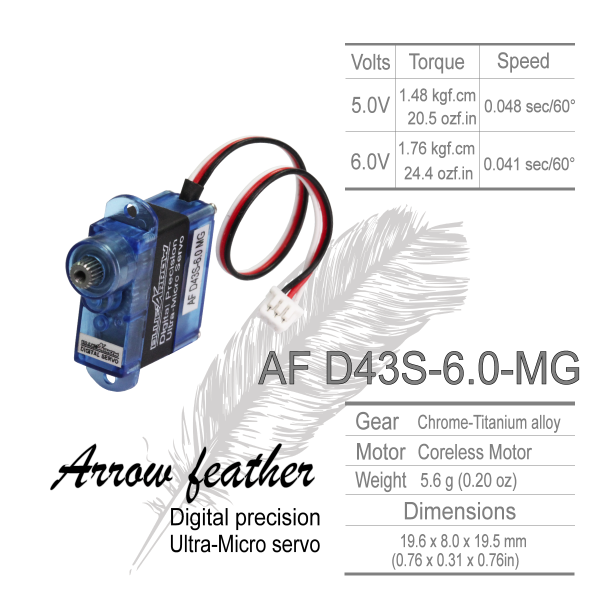

| Speed:(No-load ): | 0.06sec/ 60° @ 4.2V |
| 0.04sec/ 60° @ 6.0V | |
| Torque:(Stall Full load): | 1.18 kg . cm @ 4.2V |
| 1.76 kg . cm @ 6.0V | |
| Idle Current: | 0.013 A/ 4.2V 0.018 A/ 6.0V |
| Running Current: | 0.065 A/ 4.2V 0.075 A/ 6.0V |
| Stall Current: | 0.550 A/ 4.2V 0.800 A/ 6.0V |
| Dead Band Width: | 2μs |
| Motor Type: | |

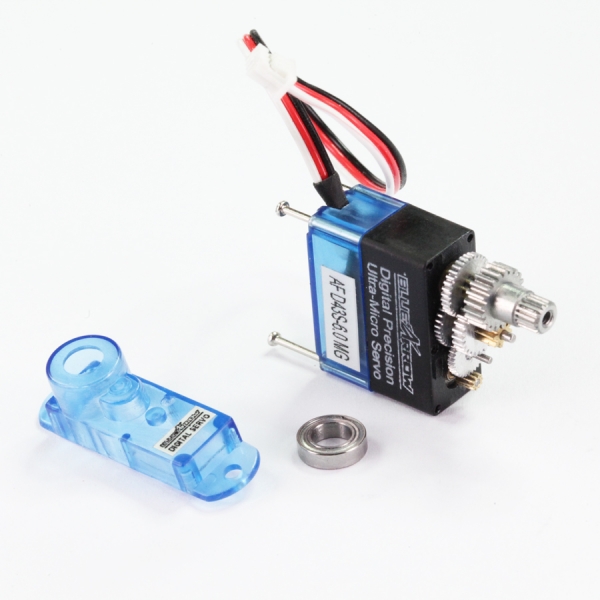

| Bearings: | Ball Bearing + Porous Bearing |
| Bearing Type: | MR74 (4mm x7mm x2mm) |
| 1.5mm x 4mm x 1.5mm | |
| Gear Material: | Cu + Chrome-Titanium alloy(7075) |
| Servo case: | ABS |
| Plug: | |
| Connector Wire Length: | 120.00 mm |
| Connector Wire SPEC: | OD0.8mm/16 x 0.08mm 3p x 120mm (JST-1.25mm) |
| Weight: | 5.60 g |

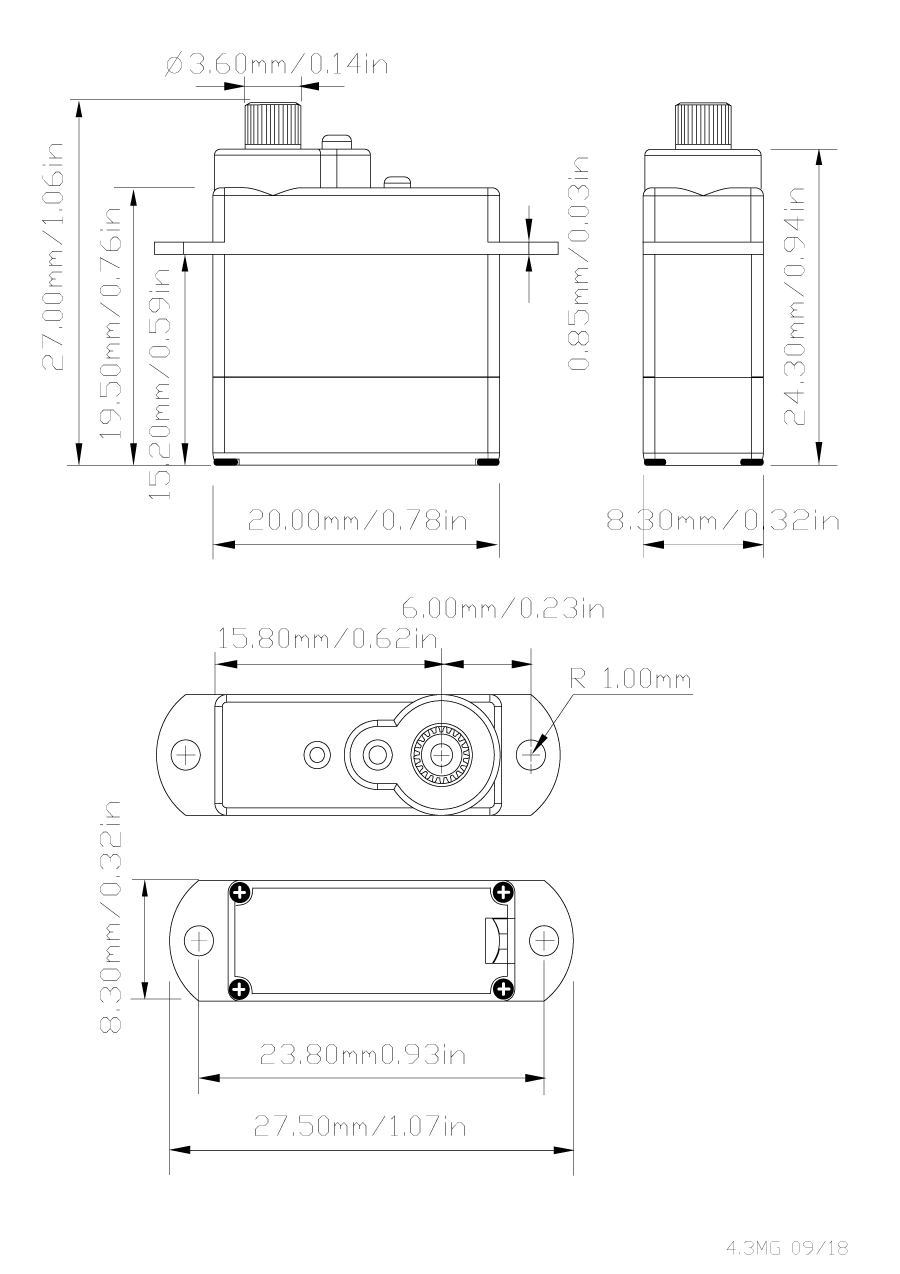

| Dimensions (L x W x H): | 19.60*8.00*19.50 mm |
