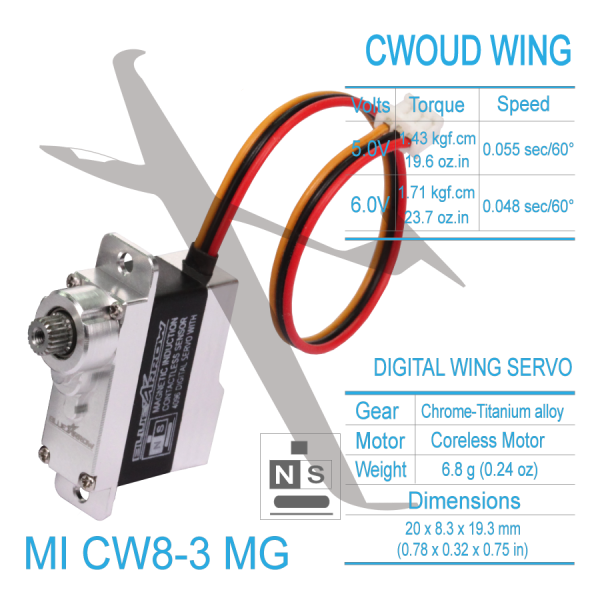

CLOUD WING
 Click to enlarge
|
|
| Control System: | PWM Pulse Width Control |
| Processor: | Digital IC |
| Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
| Working frequence: | 1520 μs /333 Hz |
| Rotation angle sensor: | MAGNETIC INDUCTION ENCODER |
| Rotation: | Left Rotation: 60° , Right Rotation: 60° |
| Voltage: | 3.5V to 6.0V |
| Temperature Range: | -20℃ to 70℃ |
| Driver Type: | |
| Operating Angle: | 60 Deg. one side pulse traveling 600μs |
| Direction: | Clockwise/Pulse Traveling 900μs-2100μs |
| Pulse Width Scope: | 900-2100μs |
| Neutral pulse: | 1500μs |
| Resolation: | Minimum resolution:0.088°/0.9μs |
| Maximum resolution:0.350°/4μs | |
| Rotational speed of magnet: | Maximum 600RPM (r / min) |
| Magnetic offset: | ±10mT |
| Magnetic input field amplitude: | 45 to 75mT |
| Speed:(No-load ): | 0.06sec/ 60° @ 4.2V |
| 0.05sec/ 60° @ 6.0V | |
| Torque:(Stall Full load): | 1.35 kg . cm @ 4.2V |
| 1.71 kg . cm @ 6.0V | |
| Idle Current: | 0.030 A/ 4.2V 0.030 A/ 6.0V |
| Running Current: | 0.110 A/ 4.2V 0.120 A/ 6.0V |
| Stall Current: | 0.400 A/ 4.2V 0.500 A/ 6.0V |
| Dead Band Width: | 1μs |
| Motor Type: | |
| Bearings: | 2 Ball Bearing |
| Bearing Type: | MR74 (4mm x7mm x2mm) |
| 681X(1.5mm x 4mm x 1.1mm) | |
| Gear Material: | Chrome-Titanium alloy(7075+6061) |
| Servo case: | Upper&lower Al middle ABS |
| Plug: | |
| Connector Wire Length: | 120.00 mm |
| Connector Wire SPEC: | OD1.0mm/30 x 0.08mm 3p x 120mm (JST-1.50mm) |
| Weight: | 6.80 g |
| Dimensions (L x W x H): | 20.00*8.30*19.30 mm |
