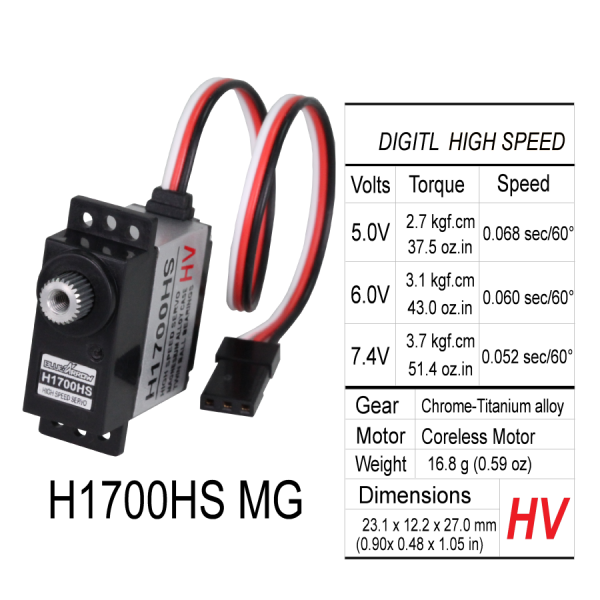

DIGITAL SERVO
 Click to enlarge
|
|
| Control System: | PWM Pulse Width Control |
| Processor: | Digital IC |
| Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
| Working frequence: | 1520 μs /333 Hz |
| Rotation angle sensor: | Precision Potentiometer |
| Rotation: | Left Rotation: 60° , Right Rotation: 60° |
| Voltage: | 4.5V to 7.4V |
| Temperature Range: | -20℃ to 70℃ |
| Driver Type: | |
| Operating Angle: | 60 Deg. one side pulse traveling 600μs |
| Direction: | Clockwise/Pulse Traveling 900μs-2100μs |
| Pulse Width Scope: | 900-2100μs |
| Neutral pulse: | 1500μs |
| Speed:(No-load ): | 0.06sec/ 60° @ 6.0V |
| 0.05sec/ 60° @ 7.4V | |
| Torque:(Stall Full load): | 3.10 kg . cm @ 6.0V |
| 3.70 kg . cm @ 7.4V | |
| Idle Current: | 0.030 A/ 6.0V 0.400 A/ 7.4V |
| Running Current: | 0.120 A/ 6.0V 0.130 A/ 7.4V |
| Stall Current: | 1.2 A/ 6.0V 1.5 A/ 7.4V |
| Dead Band Width: | 2μs |
| Motor Type: | |
| Bearings: | 2 Ball Bearing |
| Bearing Type: | MR106(6mm x 10mm x 2.5mm) |
| 682(2mm x5mm x1.5mm) | |

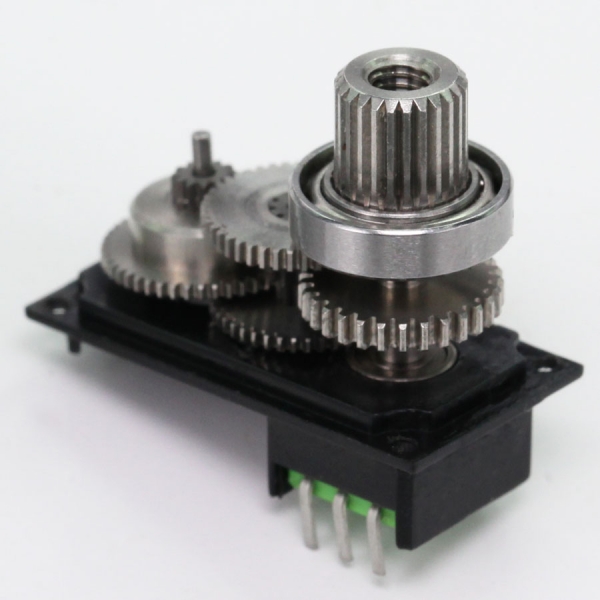

| Gear Material: | Chrome-Titanium-Al alloy(7075) |

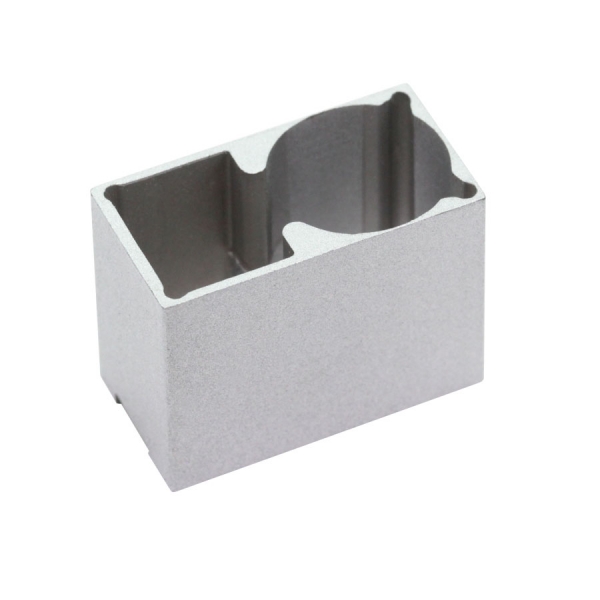

| Servo case: | Up/lower ABS Middle Magnesium |
| Plug: | |
| Connector Wire Length: | 180.00 mm |
| Connector Wire SPEC: | OD1.2mm/30 x 0.08mm 3p x 180mm (JR) |
| Weight: | 16.80 g |
| Dimensions (L x W x H): | 23.10*12.20*27.00 mm |
