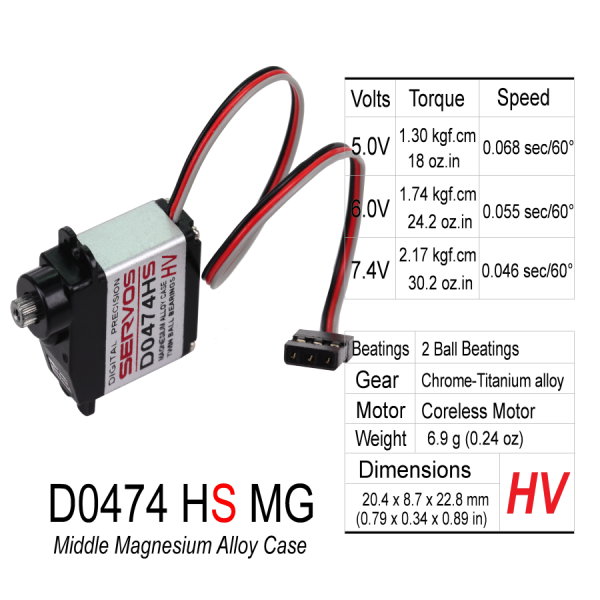

DIGITAL SERVO
 Click to enlarge |
|
| Control System: | PWM Pulse Width Control |
| Processor: | Digital IC |
| Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
| Working frequence: | 1520 μs /333 Hz |
| Rotation angle sensor: | Precision Potentiometer |
| Rotation: | Left Rotation: 60° , Right Rotation: 60° |
| Voltage: | 4.0V to 7.4V |
| Temperature Range: | -20℃ to 70℃ |
| Driver Type: | |
| Operating Angle: | 60 Deg. one side pulse traveling 600μs |
| Direction: | Clockwise/Pulse Traveling 900μs-2100μs |
| Pulse Width Scope: | 900-2100μs |
| Neutral pulse: | 1500μs |
| Speed:(No-load ): | 0.06sec/ 60° @ 6.0V |
| 0.05sec/ 60° @ 7.4V | |
| Torque:(Stall Full load): | 1.74 kg . cm @ 6.0V |
| 2.17 kg . cm @ 7.4V | |
| Idle Current: | 0.075 A/ 6.0V 0.085 A/ 7.4V |
| Running Current: | 0.130 A/ 6.0V 0.190 A/ 7.4V |
| Stall Current: | 0.660 A/ 6.0V 0.720 A/ 7.4V |
| Dead Band Width: | 2μs |
| Motor Type: | |
| Bearings: | 2 Ball Bearing |
| Bearing Type: | MR74 (4mm x7mm x2mm) |
| 681X(1.5mm x 4mm x 1.1mm) | |
| Gear Material: | Chrome-Titanium alloy(7075+6061) |
| Servo case: | Up/lower ABS Middle Magnesium |
| Plug: | |
| Connector Wire Length: | 150.00 mm |
| Connector Wire SPEC: | OD1.0mm/30 x 0.08mm 3p x 150mm (JR) |
| Weight: | 6.90 g |
| Dimensions (L x W x H): | 20.40*8.70*22.80 mm |
