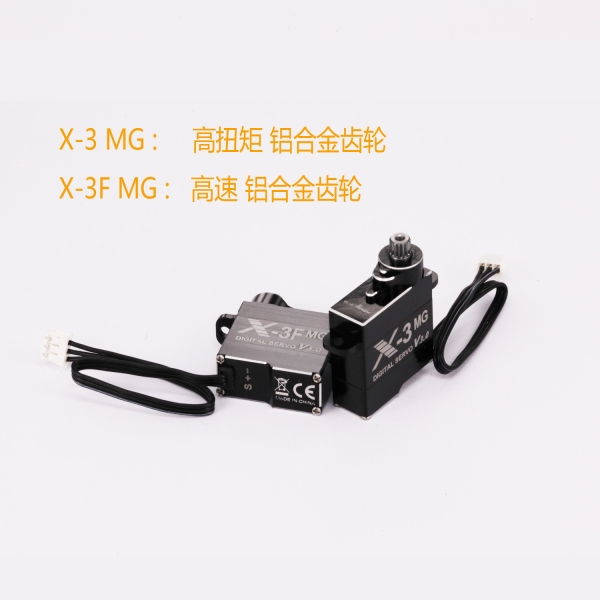

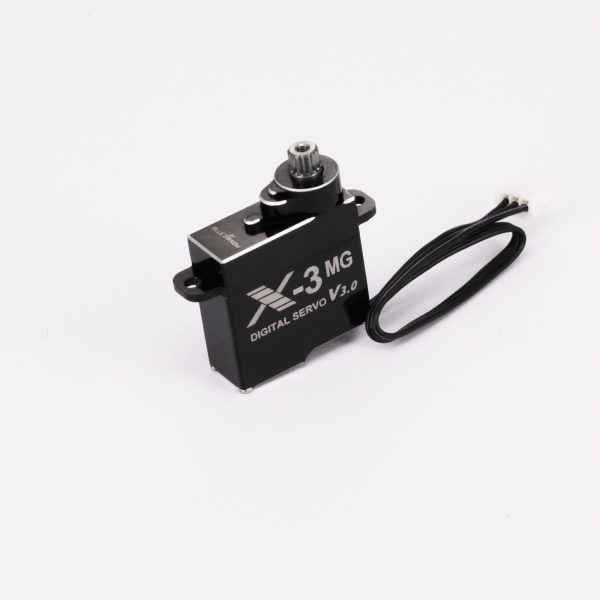

X series new all metal（steel gear） series
 Click to enlarge
|
|

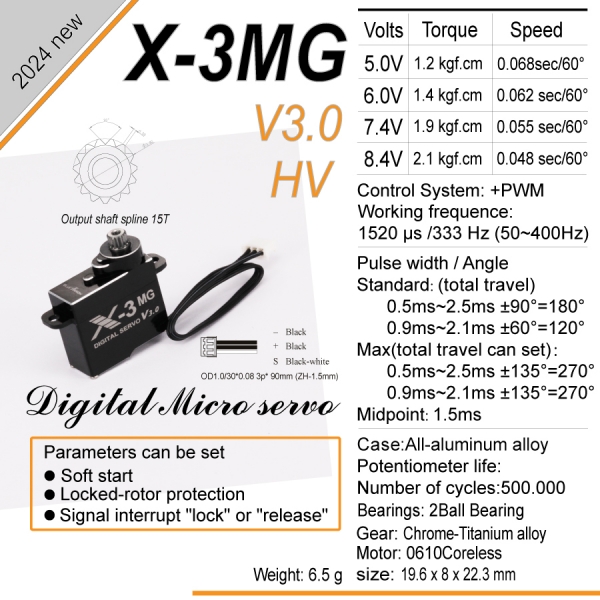

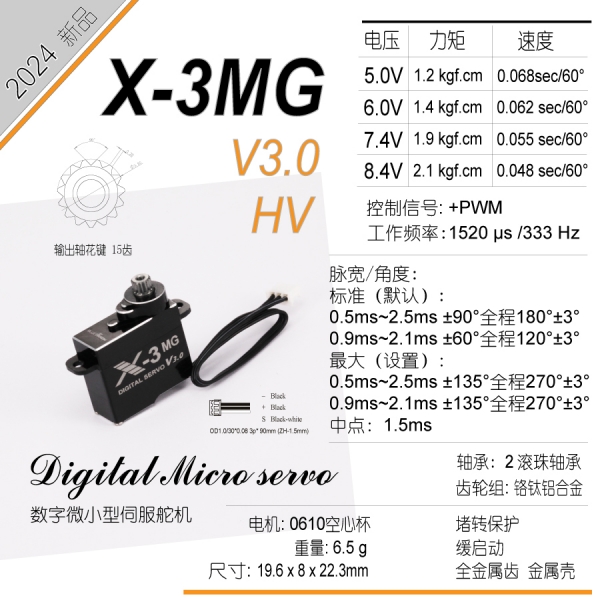

| Control System: | PWM Pulse Width Control |
| Processor: | MCU Program |
| Required Pulse: | 3 to 5 V Peak to Peak Square Wave |
| Working frequence: | 1520 μs /333 Hz |
| Rotation angle sensor: | Precision Potentiometer |
| Rotation: | Left Rotation: 90 °, Right Rotation: 90 ° |
| Voltage: | 4.0V to 8.4V |
| Temperature Range: | -20℃ to 70℃ |
| Driver Type: | |
| Operating Angle: | 180 Deg. one side pulse traveling 2500μs |
| Direction: | Clockwise/Pulse Traveling 500μs-2500μs |
| Pulse Width Scope: | 500-2500μs |
| Neutral pulse: | 1500μs |
| Speed:(No-load ): | 0.06sec/ 60° @ 6.0V |
| 0.05sec/ 60° @ 7.4V | |
| Torque:(Stall Full load): | 1.40 kg . cm @ 6.0V |
| 1.90 kg . cm @ 7.4V | |
| Idle Current: | 0.040 A/ 6.0V 0.040 A/ 7.4V |
| Running Current: | 0.090 A/ 6.0V 0.090 A/ 7.4V |
| Stall Current: | 0.63 A/ 6.0V 0.75 A/ 7.4V |
| Dead Band Width: | 2μs |
| Motor Type: | |
| Bearings: | 2 Ball Bearing |
| Bearing Type: | 1.5mm x 4mm x 1.5mm |
| 1.5mm x 4mm x 1.5mm | |
| Gear Material: | ALL-STEEL GEAR(SU303) |
| Servo case: | All aluminum alloy CNC |
| Plug: | |
| Connector Wire Length: | 90.00 mm |
| Connector Wire SPEC: | OD1.0mm/30 x 0.08mm 3p x 90 mm （JST-1.50mm） |
| Weight: | 6.50 g |

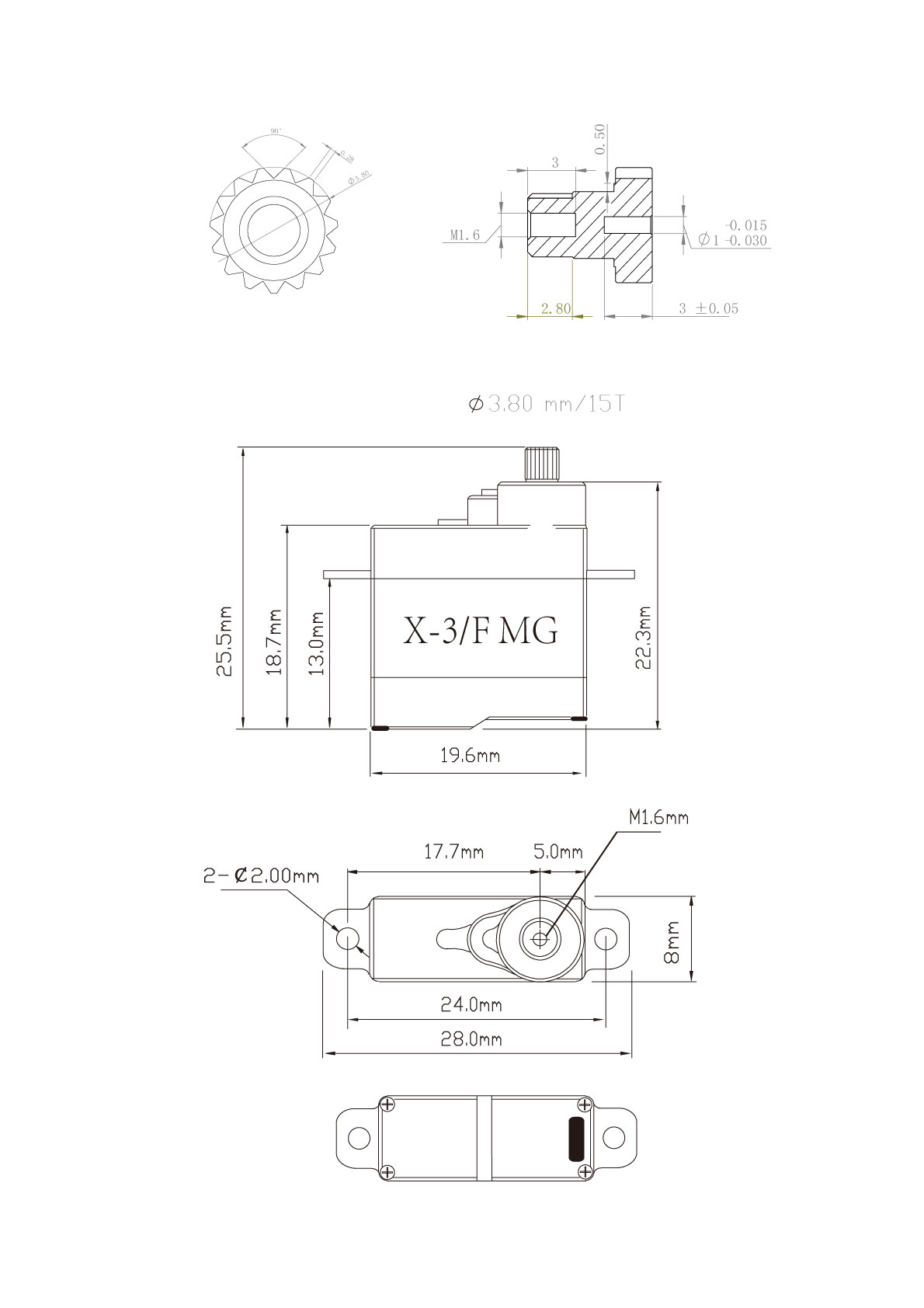

| Dimensions (L x W x H): | 19.60*8.00*22.30 mm |
